ICON 2000-04 Ford F250/F350, 4″ Lift Suspension System, Leaf Spring & Block

Description

This 4″ system is designed to lift your Ford Super Duty. 4″ front leaf springs provide room for 35” tires. This system uses a custom progressive pack for ultimate ride quality, while providing 4″ of lift. This system comes with a 1.75″ bump stop spacer (not pictured) to prevent spring fatigue during the suspension cycle. Also included in this kit is 4” rear block kit, with 15” U-bolts for a leveled stance. This system is the ideal for all Super Duties.

Features & Benefits:

• Increased wheel travel
• Durable powder coat finish
• Less body-roll than stock truck
• Isolates Stock springs for Factory Like Ride Quality
• No change in towing capacity
• No drive shaft modifications needed
• 100% Bolt-on system – no drilling, cutting or welding necessary for install

NOTES:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35:” x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #1: Front U-Bolt Note: All Front Springs Come Complete With Front U-Bolts, Washers, And Nuts. When Ordering Any Front Spring System From ICON Vehicle Dynamics Please Specify Manufacture Year.
• APPLICATION NOTE #3: No Front Driveshaft Modification Needed. Stock Driveshaft Is Fully Functional.
• APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
• APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits

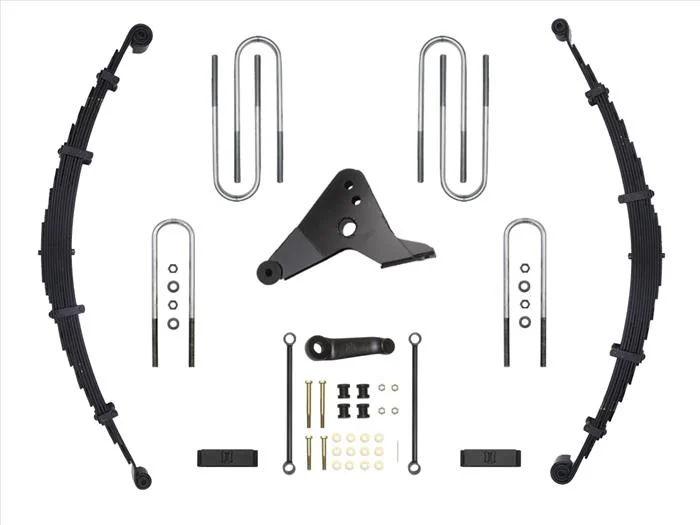

KIT COMPONENTS:

• 31020 (QTY: 1) | 00-04 FSD FRONT 4-8″ BOX KIT
• 33100 (QTY: 1) | 99-04 FSD 1.375″ BUMP STOP SPACER KIT
• 138507 (QTY: 2) | 00-04 FSD FRONT 4″ LEAF SPRING PACK
• 37001 (QTY: 1) | 00-04 FSD FRONT SEMI ROUND U-BOLT KIT
• 194275 (QTY: 1) | 99-24 FSD 4″ BLOCK KIT
• 37003 (QTY: 1) | 99-10 FSD REAR 15″ U-BOLT KIT

ICON 2000-04 Ford F250/F350, 4″ Lift Suspension System, Leaf Spring & Block | SKU: K34500-99
