Description
Dynatrac

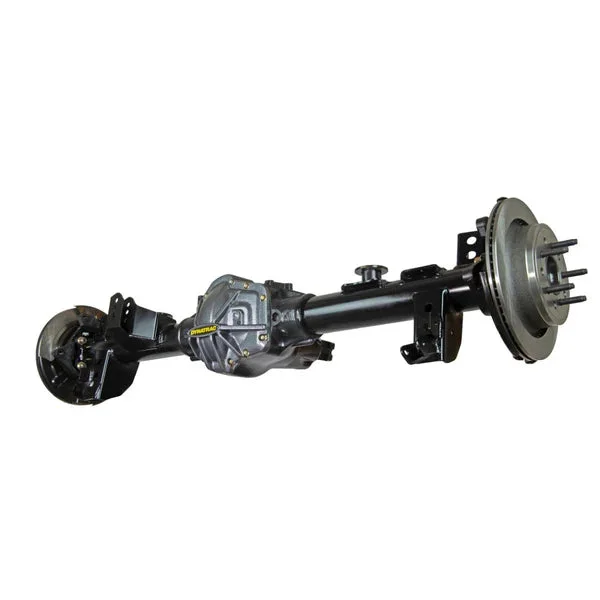

Dynatrac ProFloat XD60™ Rear Axle for 2018–Current Jeep Wrangler JL
Everyone else’s full-float axle just became obsolete. The Dynatrac ProFloat XD60™ is a proprietary rear axle system engineered to deliver the strength of a full-float axle without the added weight or the need to change wheels. Designed as a direct bolt-in upgrade for the 2018–current Jeep Wrangler JL, the ProFloat XD60 virtually eliminates axle flange bending, even with tire sizes up to 40 inches.
By completely rethinking axle housing geometry, bearing placement, and axleshaft design, Dynatrac created a rear axle that significantly improves durability while reducing unsprung weight. The result is improved on-road handling, better off-road control, and long-term reliability under extreme loads.
Key Features:
-
Major bearing offset improvement to reduce cantilever load at the wheel
-
Significantly thicker axle flange section at the wheel bolt circle
-
Larger shaft-to-flange transition radius with tapered flange skirts for added stiffness
-
Larger bearing journal diameter than traditional performance semi-float axleshafts
-
Increased seal journal diameter for improved durability and sealing
-
U.S.-made, heat-treated chromoly axleshafts
-
Available with 35-spline axleshafts
-
Up to 100 pounds lighter than comparable full-float rear axles
-
Reduced unsprung weight for improved ride quality and suspension response
-
Retains factory wheels, eliminating the need for wheel changes
-
Uses readily available heavy-duty Ford F-150 brake components
-
Fully compatible with Jeep Wrangler JL ABS and ESP systems
Strength and Design Advantages:
The ProFloat XD60 includes all of Dynatrac’s proven ProRock XD60® architecture, delivering unmatched housing rigidity, oiling performance, and ground clearance in a lightweight package engineered for extreme use.
-
Dynatrac exclusive patented ProRock® nodular-iron ProRock XD60 center section
-
Optional bearing bores for oversized pinion and carrier bearings
-
Low-pinion, standard-cut gearing optimized for rear axle applications
-
Increased ground clearance compared to any axle housing in its class
-
High-capacity carrier bearing saddle structure
-
7/16-inch differential cover bolts for added housing rigidity
-
O-ring differential cover seal with precision-machined mating surfaces
-
4.0-inch diameter variable wall thickness chromoly axle tubes
-
Dynatrac exclusive Dual-Sump High Volume™ oiling system to ensure constant pinion bearing lubrication
Fitment:
-
2018–Current Jeep Wrangler JL
SKU: JLPF-2X4010
